Description

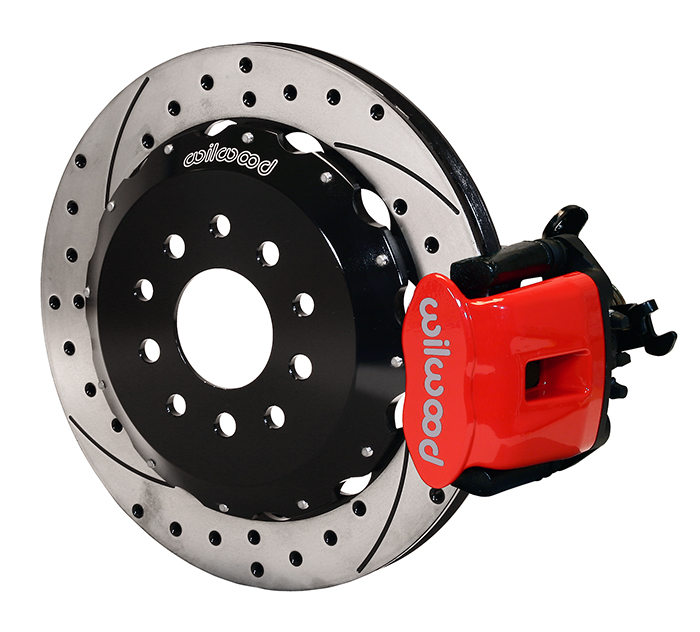

Kit Summary
| Rear End Axle: | 8.8 Ford 94-04 | |
| Axle Offset: | 3.25 | |
| Spindle Type: | ||
| Mount Type: | Radial | |
| Caliper Type: | 1 – Red Powder Coat | |
| Rotor Diameter: | 12.88 | |
| Spindle Type: | ||
| Min Wheel Diameter Req’d*: | 17 |
Fitment & Installation Details
| Rear End / Axle Housing Flange: | |
| Confirm The Configuration! | Confirm Offset Measurement! |
 |
 |
| 8.8 Ford 94-04 Flange | AXLE FLANGE CROSS-SECTION |

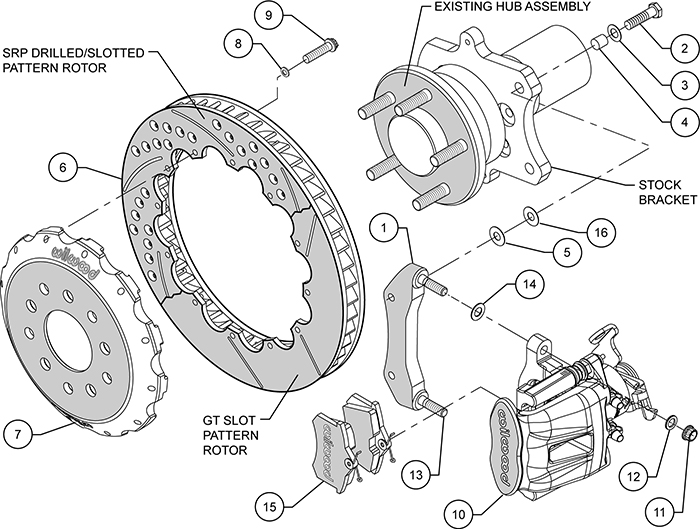

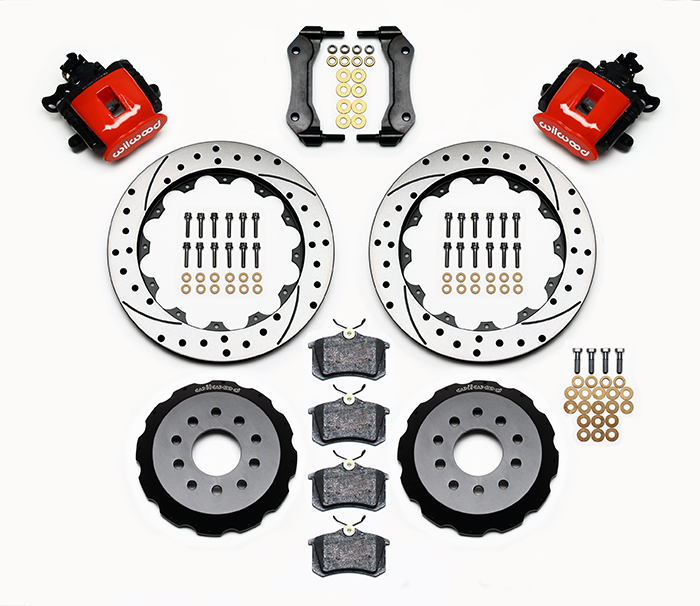

Kit Components & SpecificationsÂ
| Calipers: | Info / Part Number: |
| Left Hand – Part No: | 120-10110-RD |
| Right Hand – Part No: | 120-10111-RD |
| Type: | Combination Parking Brake |
| Finish Color: | Red Powder Coat |
| Piston Count: | 1 |
| Piston Area (In²): | 2.06 |
| Piston Type: | Steel |
| Mount Type: | Radial |
| Brake Pad Plate: | D340 |
| Brake Pad Area (In²): | 4 |
| Brake Pad Volume (In³): | 1.5 |
| Pad Compound: | BP-10 |
 |
|
| Rotors: | Info / Part Number: |
| Left Hand – Part No: | 160-13359-BK |
| Right Hand – Part No: | 160-13358-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1 |
| Vane Count: | 48 CV |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
 |
|
| Rotor Hats: | Info / Part Number: |
| Hat – Part No: | 170-6837 |
| Type: | Big Brake Hat – Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.88 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | 0.56 |
| Stud Diameter – BC 2: | 0.52 |
| Stud Diameter – BC 3: | 0 |
 |
|
| Hubs: | Info / Part Number: |
| Hub – Part No: | |
| Type: | |
| Material: | |
| Finish Color: | |
| Mount Style: | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | |
| Stud Diameter – BC 2: | |
| Stud Diameter – BC 3: |
