Description
Kit Summary
| Rear End Axle: |
|
Mustang 05-up |
| Axle Offset: |
|
2.66 |
| Spindle Type: |
| Mount Type: |
|
Radial |
| Caliper Type: |
|
1 – Red Powder Coat |
| Rotor Diameter: |
|
12.88 |
| Spindle Type: |
| Min Wheel Diameter Req’d*: |
|
17 |
Fitment & Installation Details
| Rear End / Axle Housing Flange: |
| Confirm The Configuration! |
Confirm Offset Measurement! |
 |
 |
| Mustang 05-up Flange |
AXLE FLANGE CROSS-SECTION |

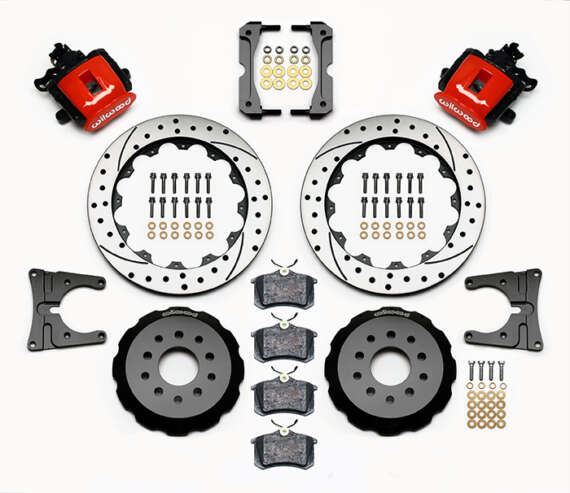

Kit Components & SpecificationsÂ
| Calipers: |
Info / Part Number: |
| Left Hand – Part No: |
120-10110-RD |
| Right Hand – Part No: |
120-10111-RD |
| Type: |
Combination Parking Brake |
| Finish Color: |
Red Powder Coat |
| Piston Count: |
1 |
| Piston Area (In²): |
2.06 |
| Piston Type: |
Steel |
| Mount Type: |
Radial |
| Brake Pad Plate: |
D340 |
| Brake Pad Area (In²): |
4 |
| Brake Pad Volume (In³): |
1.5 |
| Pad Compound: |
BP-10 |
 |
| Rotors: |
Info / Part Number: |
| Left Hand – Part No: |
160-13359-BK |
| Right Hand – Part No: |
160-13358-BK |
| Type: |
SRP Drilled Rotor |
| Style: |
SRP Drilled & Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
12.88 |
| Width (in): |
1 |
| Vane Count: |
48 CV |
| Design Type: |
SRP-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
Yes |
 |
|
| Rotor Hats: |
Info / Part Number: |
| Hat – Part No: |
170-11328 |
| Type: |
Big Brake Hat – Short Offset |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
1 |
| Bolt Circle 1: |
5 X 4.50 |
| Bolt Circle 2: |
|
| Bolt Circle 3: |
|
| Stud Diameter – BC 1: |
0.52 |
| Stud Diameter – BC 2: |
0 |
| Stud Diameter – BC 3: |
0 |
 |
|
| Hubs: |
Info / Part Number: |
| Hub – Part No: |
|
| Type: |
|
| Material: |
|
| Finish Color: |
|
| Mount Style: |
|
| Bolt Circle 1: |
|
| Bolt Circle 2: |
|
| Bolt Circle 3: |
|
| Stud Diameter – BC 1: |
|
| Stud Diameter – BC 2: |
|
| Stud Diameter – BC 3: |
|
Parts & Accessories
| Calipers: |
Info / Part Number: |
| O-ring Kit: |
Call |
| Replacement Dustboot: |
N-A |
| Replacement Piston 1: |
Call |
| Replacement Piston 2: |
N-A |
| Replacement Piston 3: |
N-A |
| Replacement Piston 4: |
N-A |
| CrossOver O-Ring Kit: |
N-A |
| Crossover Tube: |
N-A |
| Self-Bleeder Tube: |
N-A |
| Bridge Bolt Kit: |
N-A |
| Wear Plate – Left Hand: |
N-A |
| Wear Plate – Right Hand: |
N-A |
| Pad Retainer: |
N-A |
| Bleed Screw Kit: |
N-A |
| Brake Line Kits: |
Info / Part Number: |
2005 Ford Mustang
|
220-10417
|
| Parking Brake Cable: |
330-10791 |
|
| Hat: |
Info / Part Number: |
| Bolt Kit: |
|
| Hubs: |
Info / Part Number: |
| Bolt Kit: |
