Description
Kit Summary
| Spindle Type: |
|
||||||
| Mount Type: | Radial | ||||||
| Caliper Type: | 4 – Black Anodize | ||||||
| Rotor Diameter: | 11.75 | ||||||
| Min Wheel Diameter Req’d*: | 15 |
Fitment & Installation Details

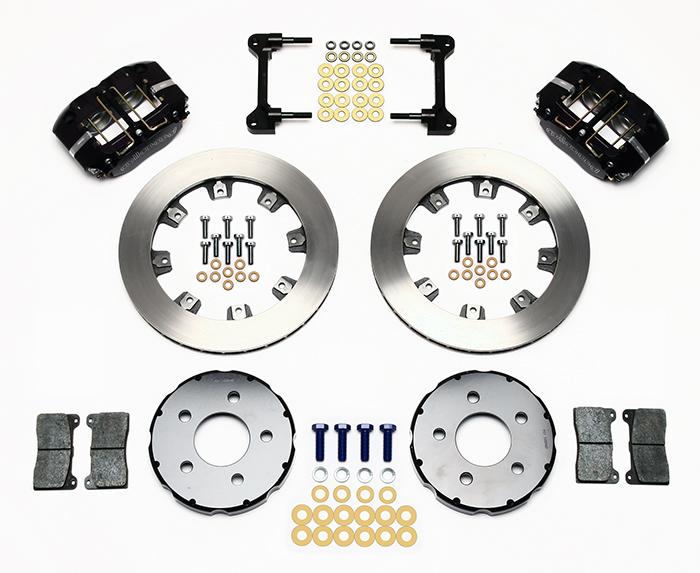

Kit Components & Specifications
| Calipers: | Info / Part Number: |
| Left Hand – Part No: | 120-10000 |
| Right Hand – Part No: | 120-10000 |
| Type: | Narrow Dynapro Radial Mount |
| Finish Color: | Black Anodize |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
 |
|
| Rotors: | Info / Part Number: |
| Left Hand – Part No: | 160-5841 |
| Right Hand – Part No: | 160-5841 |
| Type: | Ultralite HP 32 |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11.75 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
 |
|
| Rotor Hats: | Info / Part Number: |
| Hat – Part No: | 170-10040 |
| Type: | Drag Hat – Shallow Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.79 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | 0.58 |
| Stud Diameter – BC 2: | 0 |
| Stud Diameter – BC 3: | 0 |
 |
|
| Hubs: | Info / Part Number: |
| Hub – Part No: | |
| Type: | |
| Material: | |
| Finish Color: | |
| Mount Style: | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | |
| Stud Diameter – BC 2: | |
| Stud Diameter – BC 3: |
Parts & Accessories
|
|
|
| Hubs: | Info / Part Number: |
| Bolt Kit: |
