Description
Kit Summary
| Rear End Axle: | Mustang 05-up | |
| Axle Offset: | 2.66 | |
| Spindle Type: | ||
| Mount Type: | Lug | |
| Caliper Type: | 4 – Red Powder Coat | |
| Rotor Diameter: | 12.19 | |
| Spindle Type: | ||
| Min Wheel Diameter Req’d*: | 15 |

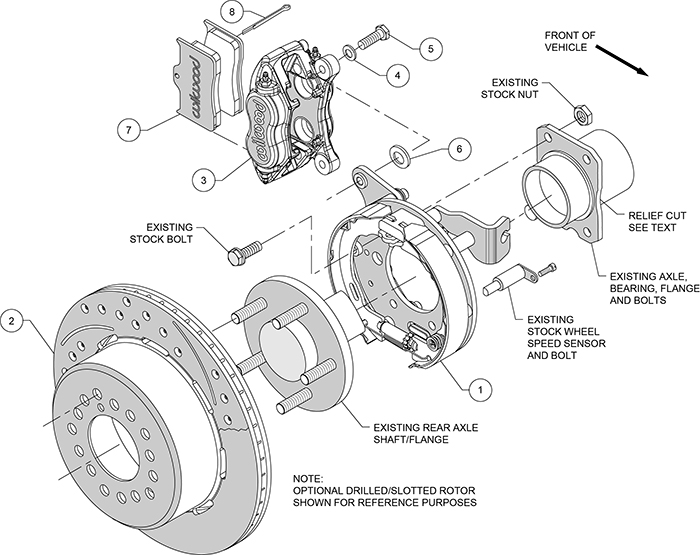

Fitment & Installation Details
|
|||||||||

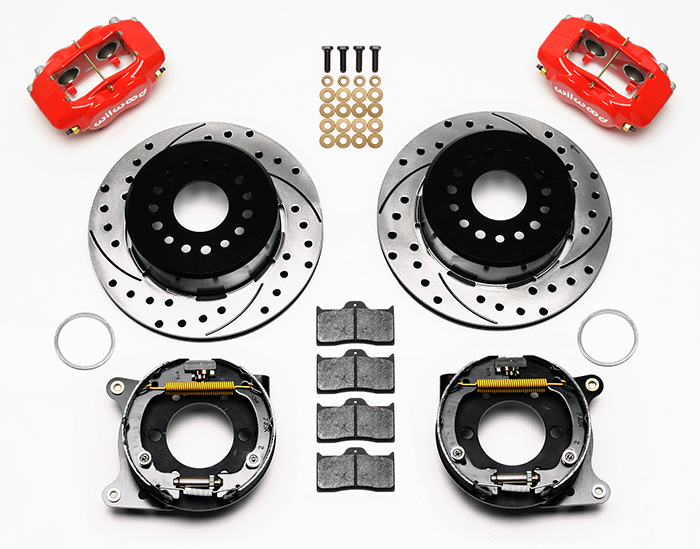

Kit Components & Specifications
| Calipers: | Info / Part Number: |
| Left Hand – Part No: | 120-6806-RD |
| Right Hand – Part No: | 120-6806-RD |
| Type: | Forged Dynalite |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
 |
|
|
||||||||||||||||||||||||||||
|
|
Parts & Accessories
| Calipers: | Info / Part Number: |
| O-ring Kit: | 130-2658 |
| Replacement Dustboot: | N-A |
| Replacement Piston 1: | 200-7518 |
| Replacement Piston 2: | 200-7518 |
| Replacement Piston 3: | N-A |
| Replacement Piston 4: | N-A |
| CrossOver O-Ring Kit: | 130-10540 |
| Crossover Tube: | N-A |
| Self-Bleeder Tube: | N-A |
| Bridge Bolt Kit: | N-A |
| Wear Plate – Left Hand: | 300-5875 |
| Wear Plate – Right Hand: | 300-5875 |
| Pad Retainer: | 180-0055 |
| Bleed Screw Kit: | 220-0627 |
|
|
|
