Description
Kit Summary
| Spindle Type: |
|
||||||
| Mount Type: | Radial | ||||||
| Caliper Type: | 6 – Red Powder Coat | ||||||
| Rotor Diameter: | 12.88 | ||||||
| Min Wheel Diameter Req’d*: | 17 |

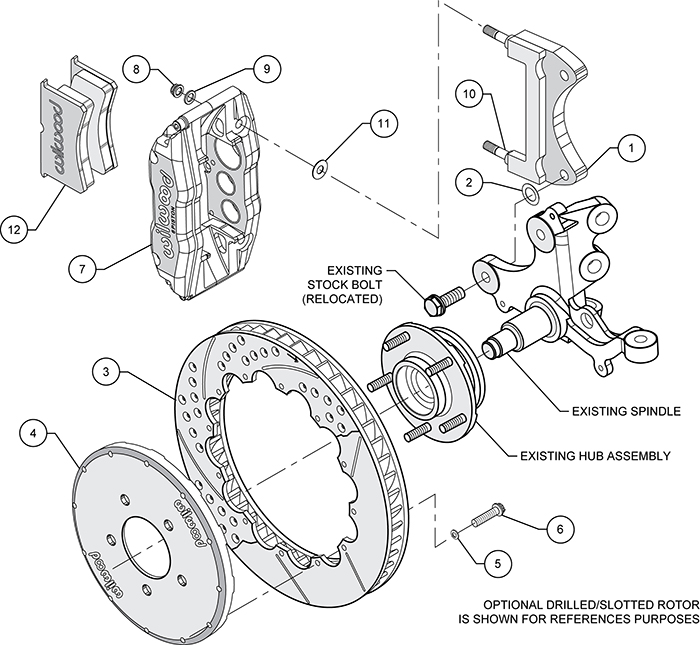

Installation Details
Kit Components & Specifications
| Calipers: | Info / Part Number: |
| Left Hand – Part No: | 120-11779-RD |
| Right Hand – Part No: | 120-11778-RD |
| Type: | Forged Narrow Superlite 6R |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
 |
|
| Rotors: | Info / Part Number: |
| Left Hand – Part No: | 160-7173–BK |
| Right Hand – Part No: | 160-7172-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1.25 |
| Vane Count: | 48 CV |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
 |
|
| Rotor Hats: | Info / Part Number: |
| Hat – Part No: | 170-6223 |
| Type: | Big Brake Hat – Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.41 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | 0.58 |
| Stud Diameter – BC 2: | 0 |
| Stud Diameter – BC 3: | 0 |
 |
|
| Hubs: | Info / Part Number: |
| Hub – Part No: | |
| Type: | |
| Material: | |
| Finish Color: | |
| Mount Style: | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | |
| Stud Diameter – BC 2: | |
| Stud Diameter – BC 3: |
Parts & Accessories |
| Calipers: | Info / Part Number: |
| O-ring Kit: | 130-5972 |
| Replacement Dustboot: | N-A |
| Replacement Piston 1: | 200-7520 |
| Replacement Piston 2: | 200-8439 |
| Replacement Piston 3: | 200-8439 |
| Replacement Piston 4: | N-A |
| CrossOver O-Ring Kit: | 130-10540 |
| Crossover Tube: | N-A |
| Self-Bleeder Tube: | N-A |
| Bridge Bolt Kit: | 230-7049 |
| Wear Plate – Left Hand: | 300-6596 |
| Wear Plate – Right Hand: | 300-6595 |
| Pad Retainer: | N-A |
| Bleed Screw Kit: | 220-0627 |
| Brake Line Kits: | Info / Part Number: |
| 1996 Ford Mustang |
220-6458 |
| Hat: | Info / Part Number: |
| Bolt Kit: | 230-4572 |
| Hubs: | Info / Part Number: |
| Bolt Kit: |
