Description
Kit Summary
| Spindle Type: |
|
|
| Mount Type: |
|
Radial |
| Caliper Type: |
|
4 – Nickel Plate |
| Rotor Diameter: |
|
12.19 |
| Min Wheel Diameter Req’d*: |
|
15 |

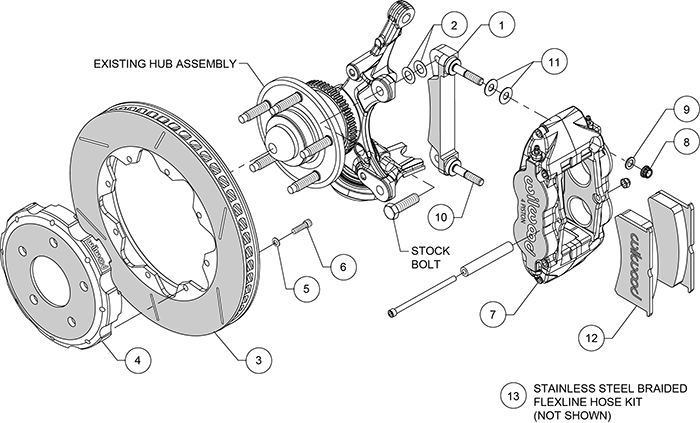

Fitment & Installation Details

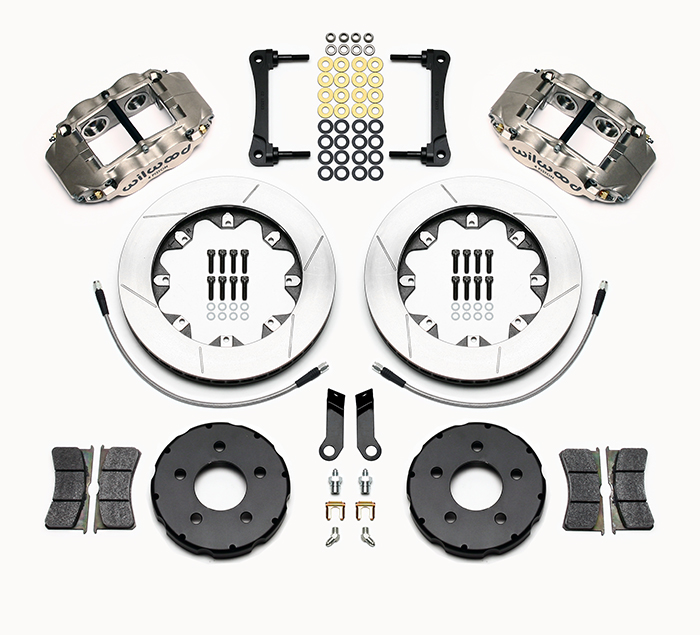

Kit Components & Specifications
| Calipers: |
Info / Part Number: |
| Left Hand – Part No: |
120-13266-N |
| Right Hand – Part No: |
120-13265-N |
| Type: |
Forged Superlite 4R |
| Finish Color: |
Nickel Plate |
| Piston Count: |
4 |
| Piston Area (In²): |
4.84 |
| Piston Type: |
Thermlock |
| Mount Type: |
Radial |
| Brake Pad Plate: |
7420 |
| Brake Pad Area (In²): |
8.2 |
| Brake Pad Volume (In³): |
4.9 |
| Pad Compound: |
PolyMatrix H |
 |
| Rotors: |
Info / Part Number: |
| Left Hand – Part No: |
160-11840 |
| Right Hand – Part No: |
160-11839 |
| Type: |
GT 48 Curved Vane |
| Style: |
GT Slotted |
| Surface Finish: |
Plain |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
12.19 |
| Width (in): |
1.25 |
| Vane Count: |
48 CV |
| Design Type: |
GT |
| Bedded: |
No |
| Dynamically Balanced: |
Yes |
 |
|
| Rotor Hats: |
Info / Part Number: |
| Hat – Part No: |
170-10040 |
| Type: |
Drag Hat – Shallow Offset |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
0.79 |
| Bolt Circle 1: |
5 x 4.50 |
| Bolt Circle 2: |
|
| Bolt Circle 3: |
|
| Stud Diameter – BC 1: |
0.58 |
| Stud Diameter – BC 2: |
0 |
| Stud Diameter – BC 3: |
0 |
 |
|
| Hubs: |
Info / Part Number: |
| Hub – Part No: |
|
| Type: |
|
| Material: |
|
| Finish Color: |
|
| Mount Style: |
|
| Bolt Circle 1: |
|
| Bolt Circle 2: |
|
| Bolt Circle 3: |
|
| Stud Diameter – BC 1: |
|
| Stud Diameter – BC 2: |
|
| Stud Diameter – BC 3: |
Parts & Accessories
| Calipers: |
Info / Part Number: |
| O-ring Kit: |
130-5100 |
| Replacement Dustboot: |
N-A |
| Replacement Piston 1: |
200-7550 |
| Replacement Piston 2: |
200-7553 |
| Replacement Piston 3: |
N-A |
| Replacement Piston 4: |
N-A |
| CrossOver O-Ring Kit: |
130-10540 |
| Crossover Tube: |
N-A |
| Self-Bleeder Tube: |
N-A |
| Bridge Bolt Kit: |
230-5978 |
| Wear Plate – Left Hand: |
300-5923 |
| Wear Plate – Right Hand: |
300-5922 |
| Pad Retainer: |
N-A |
| Bleed Screw Kit: |
220-0627 |
|
|
|
| Brake Line Kits: |
Info / Part Number: |
2005 Ford Mustang
|
220-9111 |
|
| Hat: |
Info / Part Number: |
| Bolt Kit: |
230-8390 |
|
| Hubs: |
Info / Part Number: |
| Bolt Kit: |
|
